    Mercylion A20-1CH Dash Camera 2K WiFi Single Lens Dash Cam For BMW

    • NT96675 processor, stable and powerful performance.
    • Built-in Wi-Fi, use the MERCYLION App to view and manage dash   cam recordings instantly on your iOS and android devices.
    • Easy to install, support rain sensing and fuse box power supply. Rain sensing private line and ACC hard-wire kit are both included in the package.
    • Barcode:
    bmw camera recorder 2K QUAD HD OEM-Style Dashcam For BMW Provide a variety of OEM covers suitable for most Porsche models plug-and-play easy install
    Why Choose Us? bmw hidden dash cam

    Car DVR For BMW

    bmw windshield camera

    Due to the variety of shell cover types, we use multiple SKU in one product link, send us the car model/ model year and the rear-view mirror housing pictures, and we will send you the correct dashcam model.


    A20-1 A21 A22
    A23-2 A25 A26
    bmw driving recorder price bmw cams price
    A27 A28 A28-1
    bmw dash cameras price bmw dashboard cameras price
    A28-2 A29

    Design Highlights

    It integrates into the rearview mirror to give a factory look


    Before Installation

    The original BMW rear-view mirror housing picture

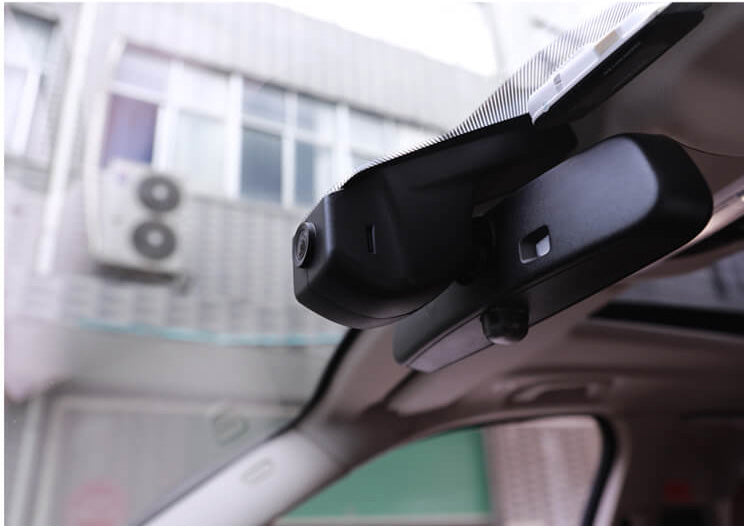

    After Installation

    Replace the surround behind the mirror, tap into the rain sensor for power,unnoticeable



    bmw dash camera


    Product Features

    2k ultra HD dash cams

    2K ultra HD Resolution

    Novatek dual-board assembly, EMC protective device with more sufficient space layout.

    64G class 10 storage dash cam

    64G class 10 TF Card Storage

    Support GPS, driving trajectory replay through mobile app. The external GPS tracker needs to be purchased separately.

    24 hours G-sensor collision detection parking monitoring function

    Mobile APP WiFi interconnected

    Working voltage 9~18V, short circuit and low voltage protection function

    Wide angle camera

    Hot sale universal hidden dash camera, 1:1 restore the original rearview mirror housing design

    Product Specification

    Model No A20-1CH
    Channel 1CH
    Processor NT96675
    Screen /
    Image Sensor IMX335 5M CMOS
    Lens Material 2G4P+IR waterproof
    Aperture F1.4
    Lens Angle diagonal 143°
    Max Resolution 2560*1600
    Encoding Type H.264
    Video Format H.264encoding, TF format storage
    Effective Pixel 5 million pixel
    Picture Format JPEG
    Recording Mode 1min/3mins/5mins/loop recording
    Storage TF card(Class 10 or above, max support 512G)
    GPS Support, external GPS optional
    Wireless Connection 802.11b/g/n/ac
    Collision Detection Triaxial accelerometer
    Horn 8Ω1W
    Parking Monitoring Start recording 20s after collision
    Start-up Time About 10 Seconds
    Working Voltage DC12V
    Working Currency 250MA ±10MA
    Operating Temperature -20℃-65℃
    Storage Temperature -30℃-85℃
    Front Cam Installation Plug-and-Play or Hard-wiring Both Support
    Application Use for BMW 1 Series (2013/2014/2015/2020); 2 Series 2018; 3 Series 2015/2019; 5 Series (2014/2015/2016); 6 Series 2019; 6 Series GT 2018; 7 Series (2013-2016);
    X1 (2016/ 2018/2019); X2 2018; X3 2013; X5 (2012/2014/2015/2016; X5 xDrive28i 2018; X6 2016; GT 2015; X3 2013; Four door coupe 425i 2017; 430i gran coupe 2017; XDrive 35i Elegant 2018; X6 2016-2019

    Packing List

    1. Host x1

    2. Rain sensor plug-and-play power cable x1

    3. S015 fuse box power cabke x 1

    4. 64GB TF card x 1


    5. Pry tool x1

    6. Manual x 1

    Product Size

    bmw security camera
    Package Dimension 30 x 21x11 mm
    Package Weight 0.8kg

    There are 2 common ways to power Mercylion A2 series dash cams(for BMW). Rain sensor powering and Fuse box powering methods. Rain sensor plug-and play cable and fuse box hard-wiring cable are both included in the package, you can choose one of them to install the dash cam according to your actual needs. If you have questions during installation, please feel free to contact us, we are here to help.

    Installation Overview

    dash cam GPS

    Get power from Rain Sensor

    Use the pry tool to remove your vehicle's original rear view mirror housing carefully, connect the plug-and-play cable corresponding end to the rain sensor and the dash cam, then clean up the wires. Finally, tear off the lens protective film and install the recorder shell well.

    Rain Sensor Connection Instruction

    rain sensor powering dash cam method

    The picture takes A10 as an instance, the rain sensor plug place depends on your vehicle type, if you can't find it correctly, email us.

    Rain Sensor Powering Installation Tutorial(Take MERCYLION A40-1CH Dash Cam as a Reference)

    Get power from Fuse Box

    If you choose to install by get power from fuse box, it is recommended to have a professional to install it. A1 series dash camera fuse box wire has two terminals, the connection method is as follows:

    Wiring Definition Function
    Yellow wire 12V Constant Power Connect to the positive electrode of the car battery (BATT+)

    Black wire

    GND Grounding; connect to the negative pole of the car battery and ground

    Fuse Box Wiring Instruction

    fuse box powering dash cam method
      Special Notice: Do not install/mount the camera or cables near an airbag panel or within the airbag’s working range. The manufacturer is not liable for any injury or death caused by the deployment of the airbag.

    Fuse Box Powering Installation Tutorial(Take MERCYLION A40-1CH Dash Cam as a Reference)
