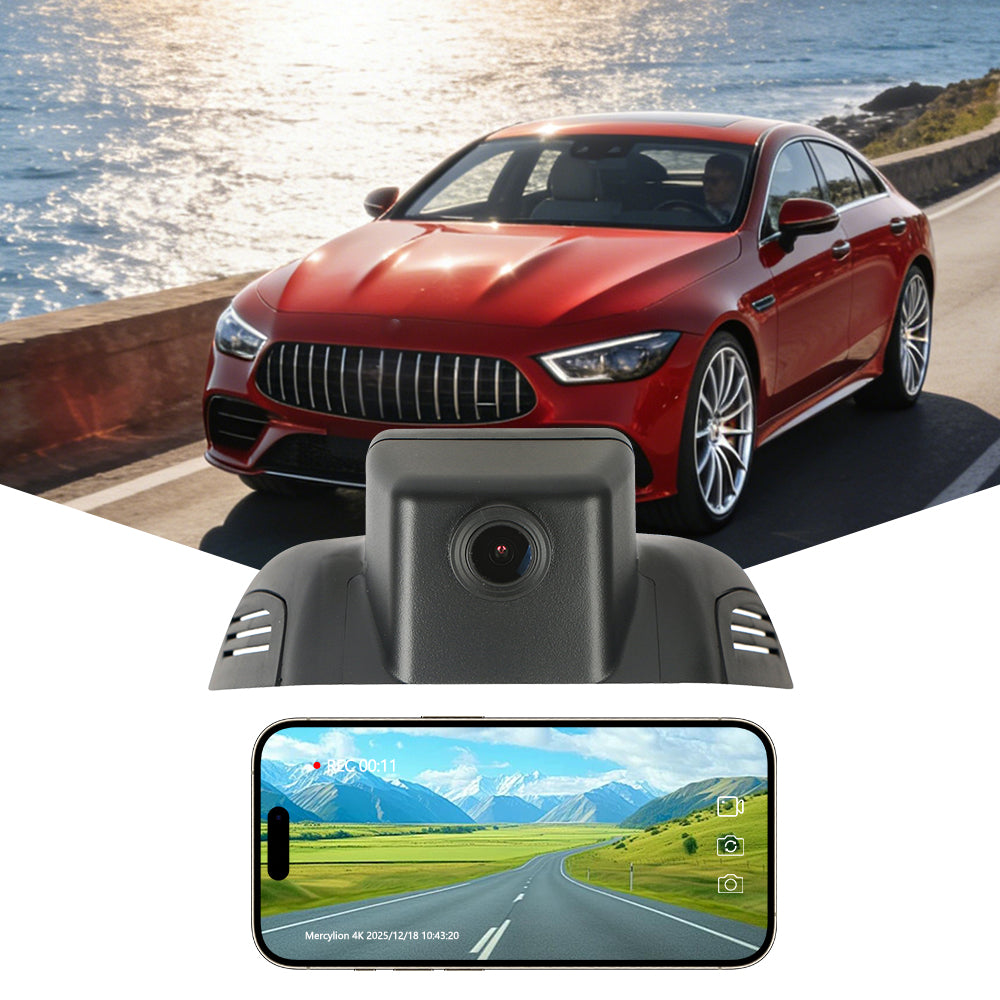

    Mercylion A19-1 Integrated Dashcams for CLS300 CLS350 2015 GLS320 2016

    $165.00
    • Barcode:

    Send us the car model/ model year and the rear-view mirror housing pictures, and we will send you the correct integrated dashcam model.

    Product Specification

    Model No A19-1-1CH Model No A19-1-2CH

    Channel

    Front Cam only Channel Front and Rear Cam

    Processor

    NT96675 Processor NT96675

    Screen

    / Screen /
    Image Sensor IMX335 5M CMOS Image Sensor IMX307 2M CMOS

    Lens Material

    2G4P+IR waterproof Lens Material  2G4P+IR waterproof

     Aperture

    F1.4 Aperture F1.4
    Lens Angle  diagonal 143° Lens Angle
    diagonal 143°
    Max Resolution 2560*1600 Max Resolution 1920*1080
    Encoding Type H.264 Encoding Type H.264
    Video Format H.264encoding, TF format storage Video Format H.264encoding, TF format storage
    Effective Pixel 5 million pixel Effective Pixel 2 million pixel
    Picture Format JPEG Picture Format JPEG
    Recording Mode 1min/3mins/5mins/loop recording Recording Mode 1min/3mins/5mins/loop recording
    Storage TF card(Class 10 or above, max support 512G) Storage TF card(Class 10 or above, max support 512G)
    GPS Support, external GPS optional GPS Not Support
    Wireless Connection 802.11b/g/n/ac Wireless Connection 802.11b/g/n/ac
    Collision Detection Triaxial accelerometer Collision Detection Triaxial accelerometer
    Horn 8Ω1W Horn 8Ω1W
    Parking Monitoring Start recording 20s after collision Parking Monitoring Start recording 20s after collision
    Start-up Time About 10 Seconds Start-up Time About 10 Seconds
    Working Voltage DC12V Working Voltage DC12V
    Working Currency 250MA ±10MA Working Currency 250MA ±10MA
    Operating Temperature -20℃-65℃ Operating Temperature -20℃-65℃
    Storage Temperature -30℃-85℃ Storage Temperature -30℃-85℃
    Front Cam Installation Plug-and-Play or Hard-wiring Both Support Front Cam Installation Hard-wiring from the front cam
