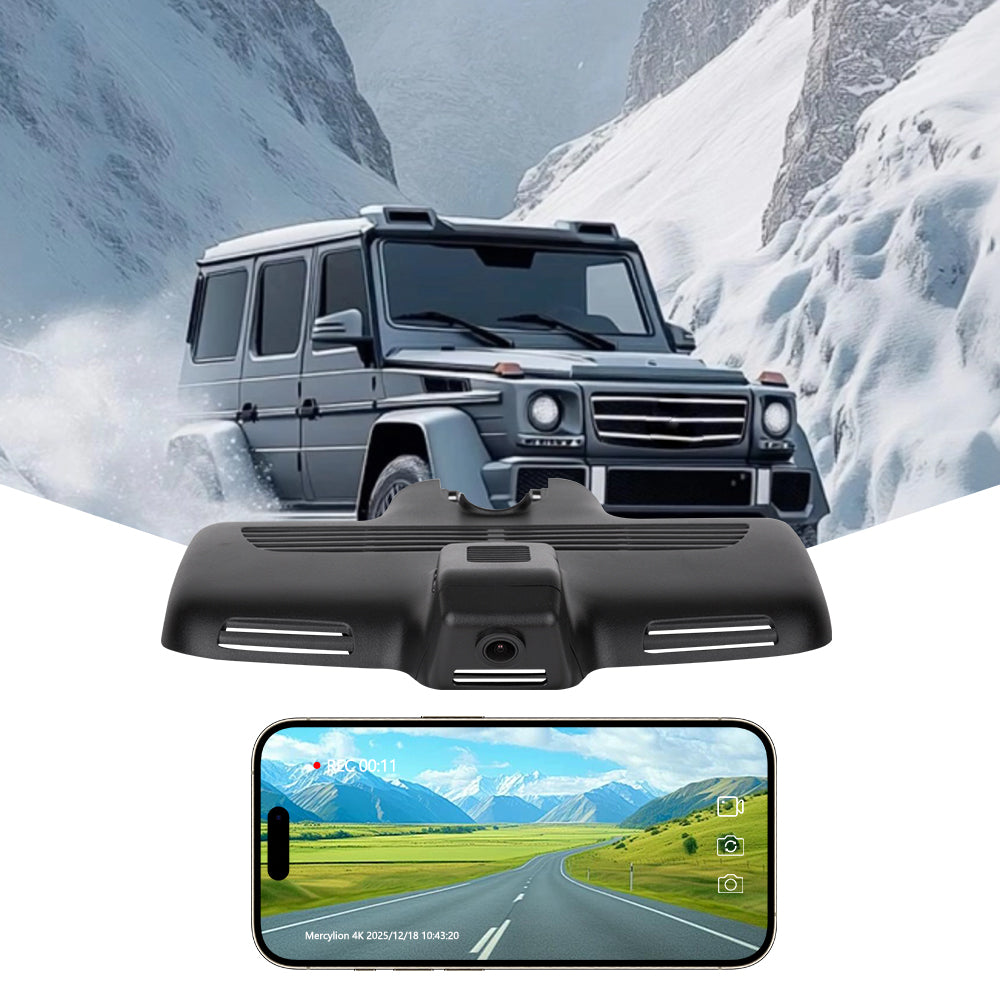

    Mercylion A10-5 Dashcam Camera for Mercedes

    $165.00
    • Barcode:

    Send us the car model/ model year and the rear-view mirror housing pictures, and we will send you the correct integrated dashcam model.

    Product Specification

    Model No A10-5-1CH Model No A10-5-2CH

    Channel

    Front Cam only Channel Front and Rear Cam

    Processor

    NT96675 Processor NT96675

    Screen

    / Screen /
    Image Sensor IMX335 5M CMOS Image Sensor IMX307 2M CMOS

    Lens Material

    2G4P+IR waterproof Lens Material  2G4P+IR waterproof

     Aperture

    F1.4 Aperture F1.4
    Lens Angle  diagonal 143° Lens Angle
    diagonal 143°
    Max Resolution 2560*1600 Max Resolution 1920*1080
    Encoding Type H.264 Encoding Type H.264
    Video Format H.264encoding, TF format storage Video Format H.264encoding, TF format storage
    Effective Pixel 5 million pixel Effective Pixel 2 million pixel
    Picture Format JPEG Picture Format JPEG
    Recording Mode 1min/3mins/5mins/loop recording Recording Mode 1min/3mins/5mins/loop recording
    Storage TF card(Class 10 or above, max support 512G) Storage TF card(Class 10 or above, max support 512G)
    GPS Support,external GPS optional GPS Not Support
    Wireless Connection 802.11b/g/n/ac Wireless Connection 802.11b/g/n/ac
    Collision Detection Triaxial accelerometer Collision Detection Triaxial accelerometer
    Horn 8Ω1W Horn 8Ω1W
    Parking Monitoring Start recording 20s after collision Parking Monitoring Start recording 20s after collision
    Start-up Time About 10 Seconds Start-up Time About 10 Seconds
    Working Voltage DC12V Working Voltage DC12V
    Working Currency 250MA ±10MA Working Currency 250MA ±10MA
    Operating Temperature -20℃-65℃ Operating Temperature -20℃-65℃
    Storage Temperature -30℃-85℃ Storage Temperature -30℃-85℃
    Front Cam Installation Plug-and-Play or Hard-wiring Both Support Front Cam Installation Hard-wiring from the front cam
