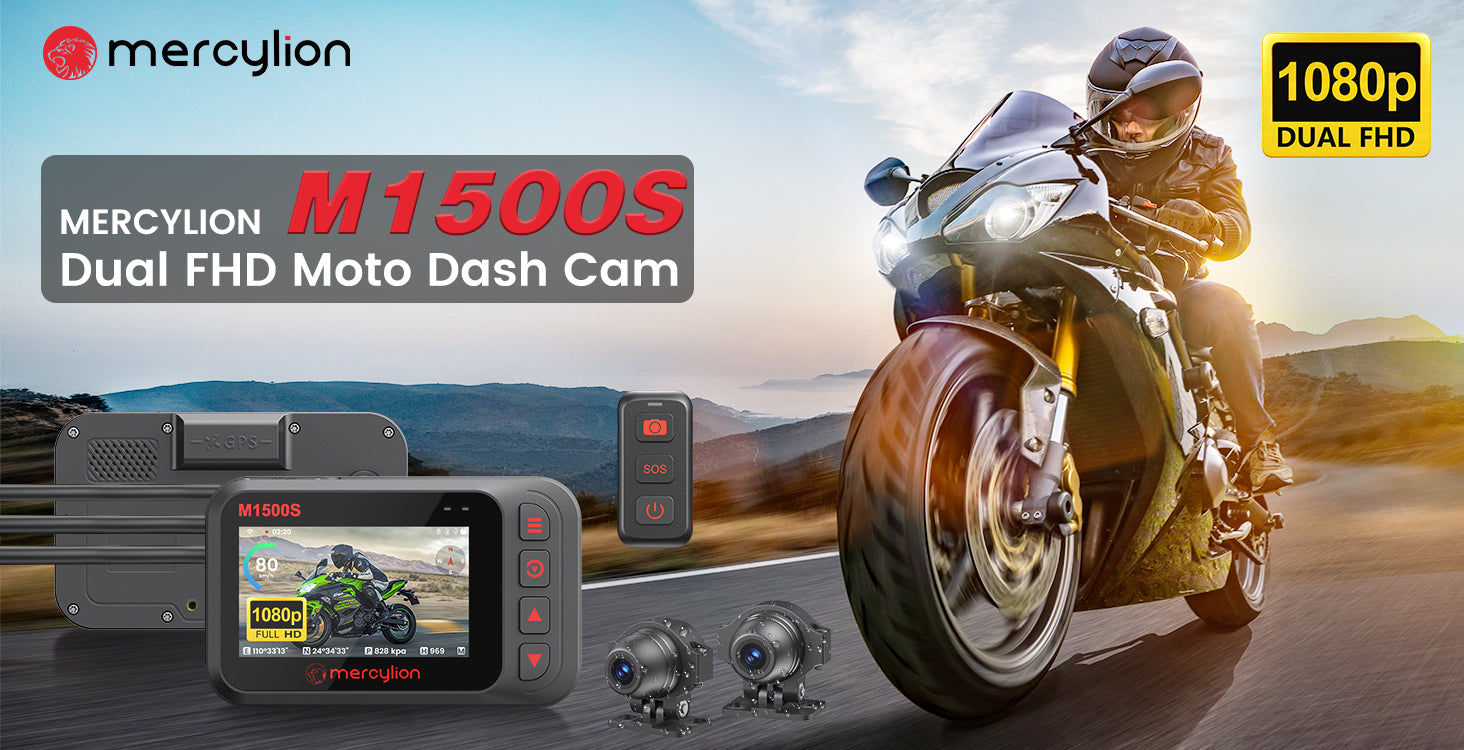

Mercylion M1500S Motorcycle Dash Camera

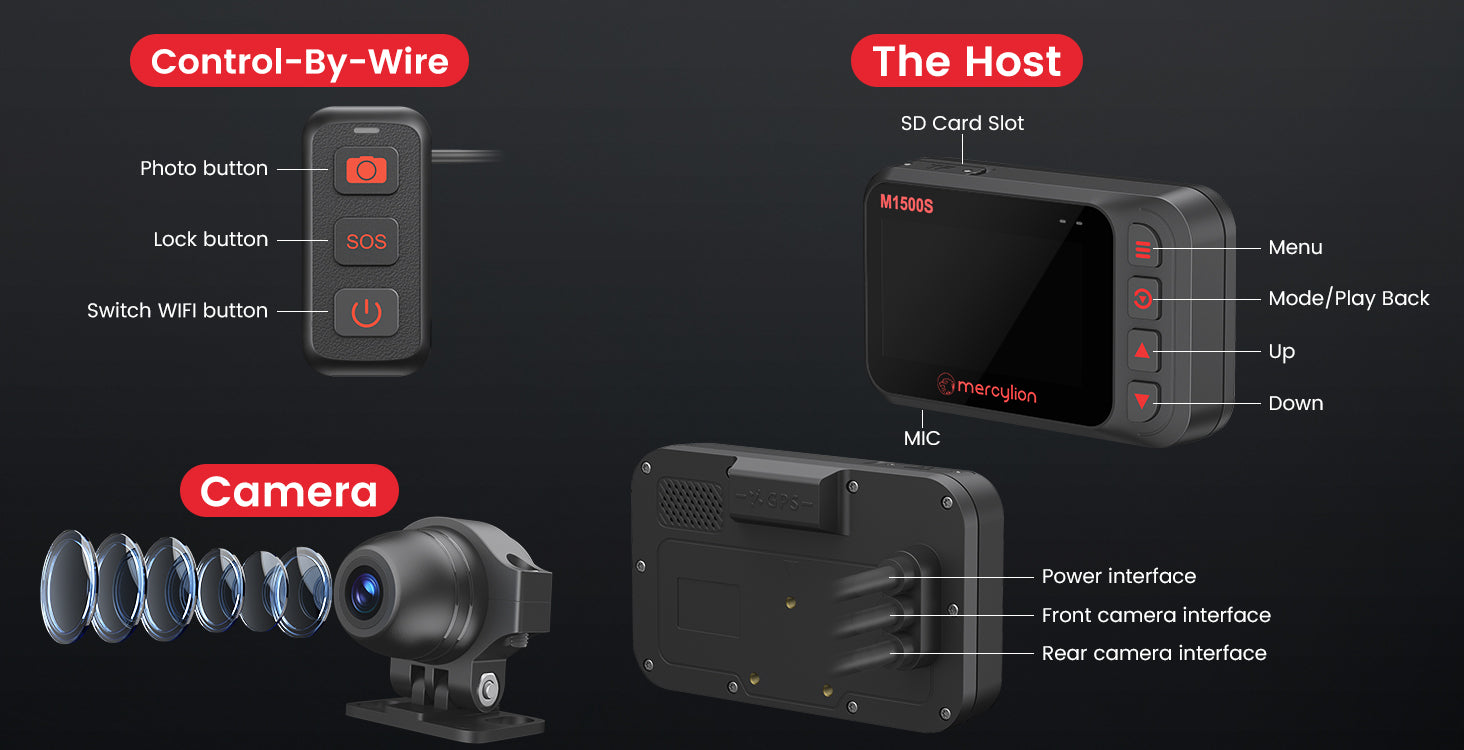

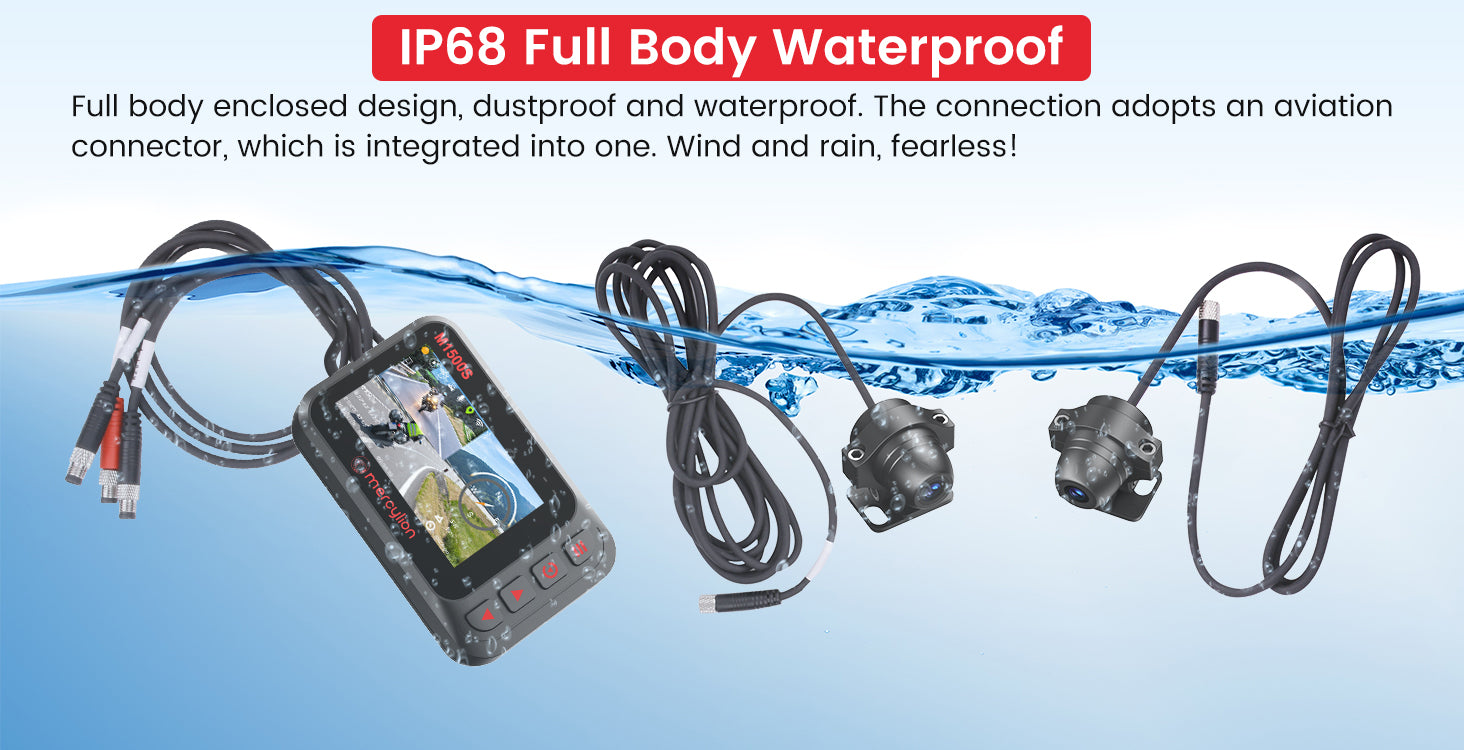

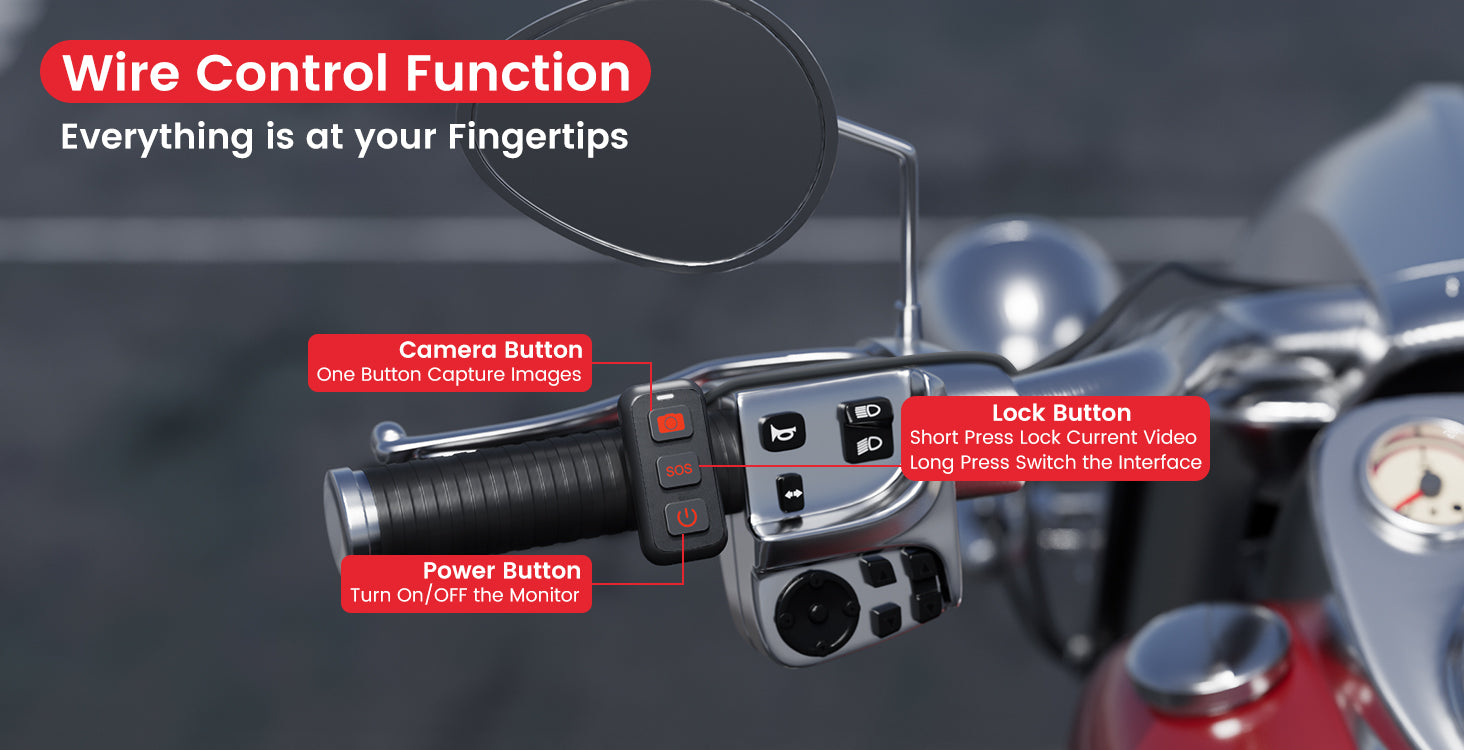

[Product Description]The M1500S Motorcycle DVR camera MSTAR version uses an SSC8339 chip paired with a 3.0 inch 854 * 480 display screen; The display components of the entire machine adopt a fully bonded processing technology to improve the display effect of the product and achieve better dust, water, and fog prevention; The entire machine can pass the protection level of IP68; The M1500S supports GPS and BDS dual-mode satellite positioning systems, supports displaying speed longitude and latitude, and video trajectory tracking;, Support speed dial/steering dial mode display mode; Support digital display of air pressure/altitude; Support 24-hour G-sensor collision sensing parking monitoring function. The camera adopts a more compatible AHD signal transmission method, and the M1500S MST version can be equipped with a wired remote control button box, which facilitates users to operate the switch display screen, WiFi, and lock video with one click; The default standard line control button.

Support for low voltage protection voltage value parameter setting,which can monitor the motorbike battery voltage to keep your battery from being drained, giving you extra peace of mind.

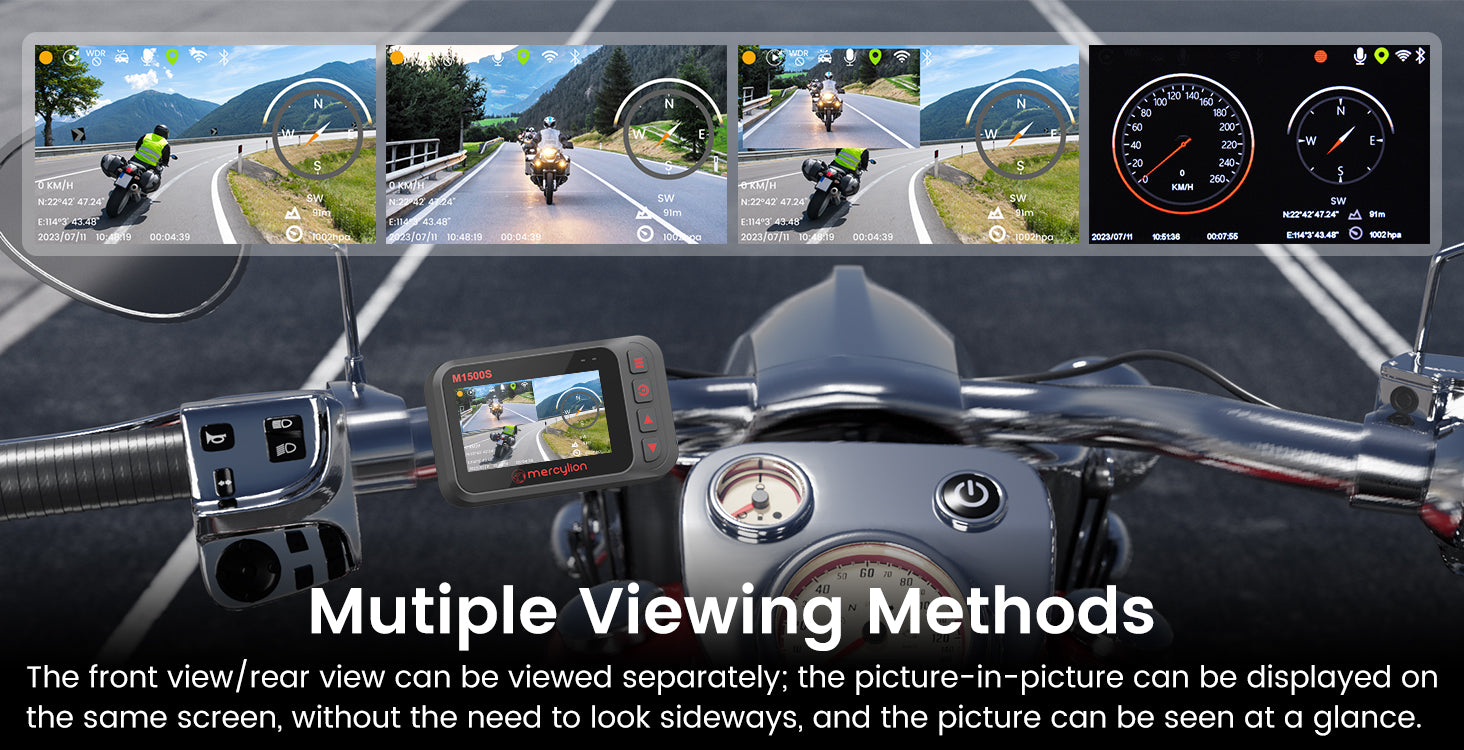

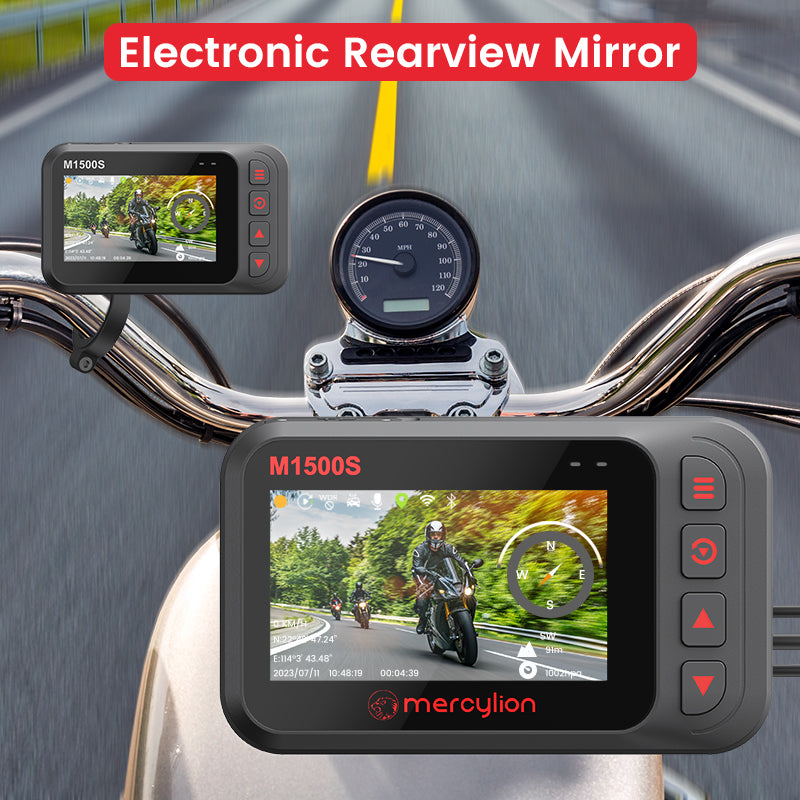

Can be used as an electric rear mirror to substantially enhance safety during a motorcycle ride, and provide wide and appropriate rear views for the motorcycle riders.

Each segment in TS format can be independently decoded, allowing for smooth storage, decoding, and playback even when abruptly terminated in emergency situations.If the traditional format is suddenly terminated in an emergency, or the data is damaged, the entire file cannot be decoded and played.

Built-in omnidirectional Noise Cancelling Microphone and speaker to capture high-quality audio clearly without distortion. Don't want to record voice? One press to turn the microphone off.

Adopting double AHD lossless signal transmission with super anti-interference, eliminating crash and flashing screen.

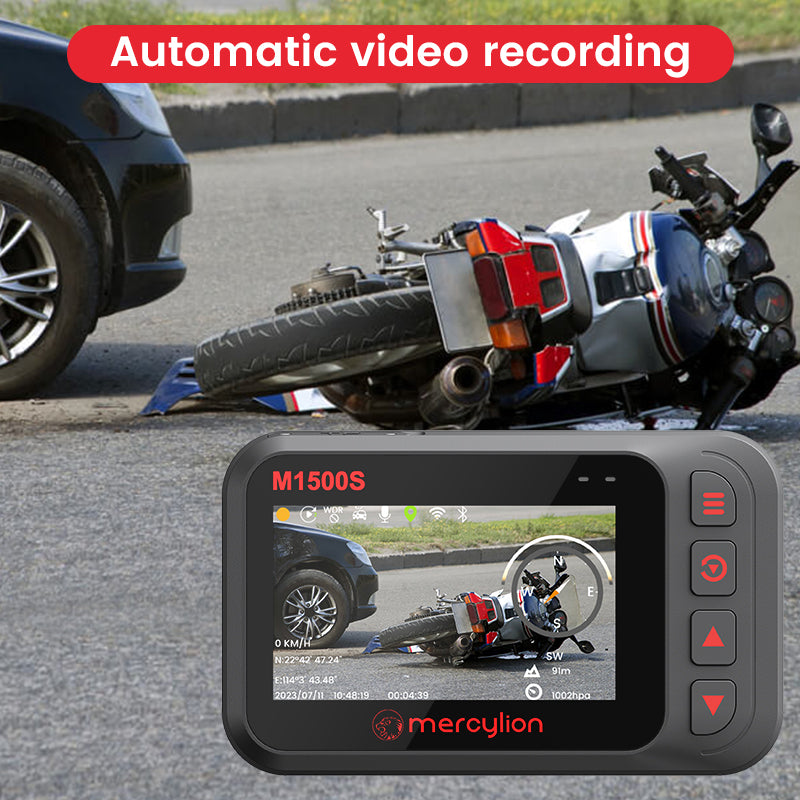

When the built-in gravity sensor detects a sudden shake or collision or crash, the dashcam will automatically record and lock the footage as evidence of accident and these videos will not be overwritten.

Product Specification

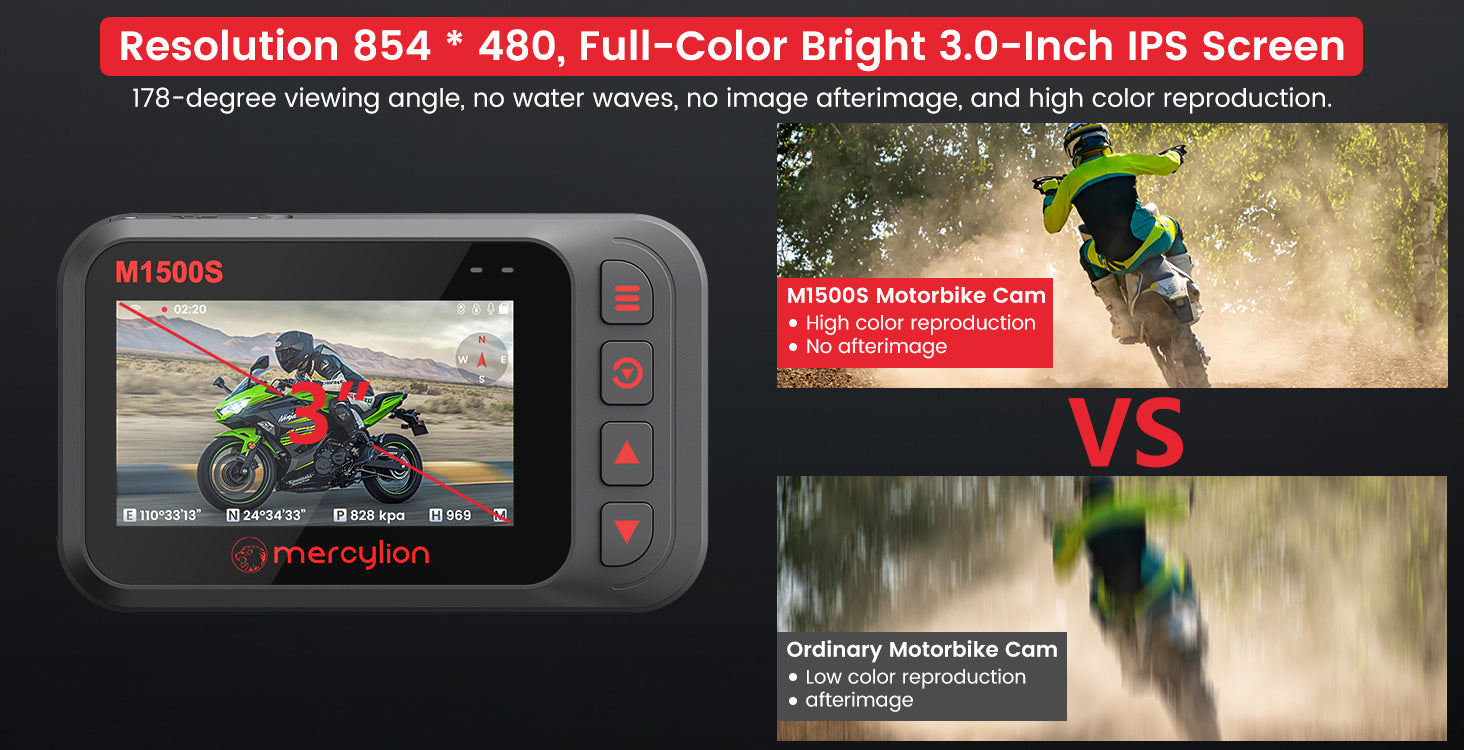

Model No	M1500S Motorcycle Dashcam	Display	3.0 Inches 854*480
Processor	SSC8339	Channel	Front and Rear Cam
Image Sensor	GC2053 2M CMOS sensor	Lens Material	6G+IR waterproof
Aperture Value	F2.0	Lens Angle	145° wide angle
Max. Resolution	Front/Rear 1920*1080	Encoding type	H.264
Video Format	H.264 encoding, TS storage	Effective pixels	2 million pixel
Picture Format	JPEG	Recording Mode	1min／3mins／5mins／loop recording
Storage	32G TF card（Class 10 or above,max support 128G）	GPS	Support, internal GPS+BDS
Wireless connection	802.11b/g/n/ac	Speaker	8Ω1W
Collision Detection	three-axis acceleration sensor	Parking Monitoring	Start recording 60s after the collision
Start-up time	About 10 Seconds	Working voltage	DC12V
Working Currency	500MA ±10MA	Operating temperature	-20℃-65℃
Storage temperature	-30℃-85℃	Waterproof rate	IP68

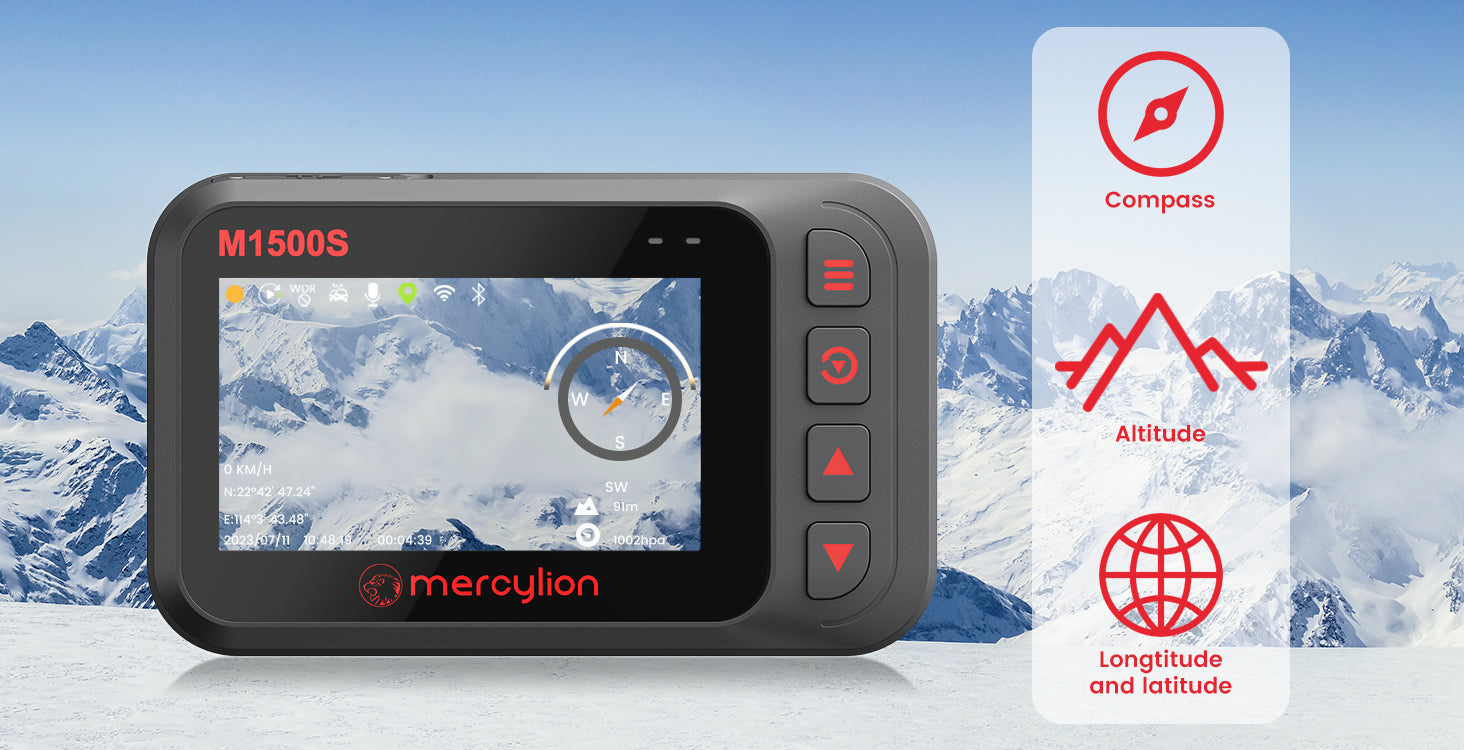

Air pressure	Support	Altitude	Support
Compass speed dials	Support	Wire Control	Support

Product Size

Product Dimension	24.5*21.5*9.5cm
Package Weight	1.1kg
