When reversing, the screen automatically switches to the reversing image with an adjustable reversing aid line, which can be adjusted according to the size of your car, allowing you to enjoy the zero-blind zone reversing experience, which makes reversing safer and easier.
With IP67 rear camera, no need to worry that the rear view camera installed outside the car will be damaged by rain.
You can install the rear camera on the license plate or on the rear windshield with the included brackets.
Hard Wire Kit Cable Needed,allows to keep recording even after the car is turned off,providing 24-hour surveillance for car security.
Built-in G-sensor,detecting unexpected vibrations within your vehicle.The options are set to high, medium, low and off.
Wide angle of both front and rear cameras helps you capture more details in the events.
| Model No | M9661 |
| Channel | 2CH |
| Screen | 9.66 inch touch screen |
| Processor | MSTAR(MSC8339) |
| Image Sensor | IMX307 |
| Lens Material | 4 glass lens |
| Aperture | F1.8 |
| Lens Angle | Horizontal 150° |
| Max Resolution | Front/Rear 1920*1080 |
| Encoding type | H.264 |
| Video format | TS |
| Effective pixel | 2 million pixel |
| Picture Format | JPEG |
| Recoding mode | 1Min／2Mins／3Mins loop recording |
| Storage | TF card（Class 10 or above，max support 64G） |
| Wireless connection | No |
| Collision Detection | triaxial accelerometer |
| Horn | 8Ω1W |
| Start-up time | Around 10 seconds |
| Working voltage | DC5V |
| Working Currency | Less than 3A |
| Operating Humidity | 15~85%RH |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -30℃-85℃ |
| Rear Cam | C108 |
| Image Sensor | IMX307 |
| Lens Material | 6G+IR |
| Aperture Value | F/ON 2.0 |
| Lens Angle | 143° |
| Max. Resolution | 1920*1080 |
| Effective pixels | 2 million pixels |
| Working Voltage | DC 5V |
| Working Currency | <150mA |
1. Main host x1
2. Bracket bandage x2

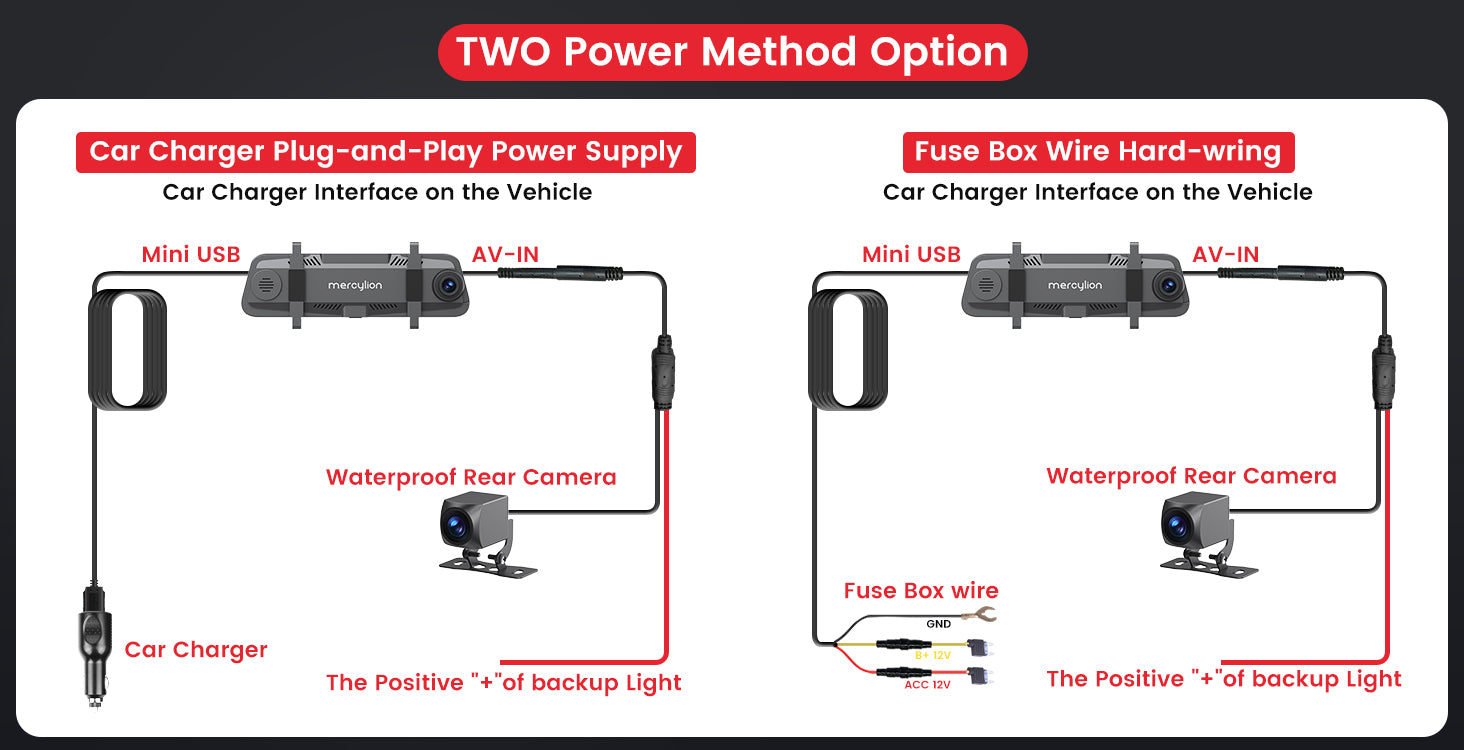

3. 12V transfer to 5V Power cable with car charger, cable length 2.5M x1(Optional)
4. C108 Backup camera x 1
5. Fuse box wire x1(Optional)
6.Connector cable with 2.5mm earphone port, cable length 5.5M x1
7. User manual x1
| Product Dimension | 257*27*38MM |
| Weight Of Unit Product | 1.072 KG |
| Mercedes | BMW | Audi | Porsche | Land Rover | Cadillac | Volkswagen | Maserati | LEXUS |
|---|---|---|---|---|---|---|---|---|
| Infiniti | Honda | Toyota | Geely | Trumpchi | Souast | Ford | Volvo | Chevrolet |
| GWM | Buick | Zoyte | Landwind | Peugeot | DS | Jeep | Changan | Renault |
| LINCOLN | BORGWARD | Roewe | Red Banner | Tesla | MAZDA | BYD | CAC | Xpeng |
